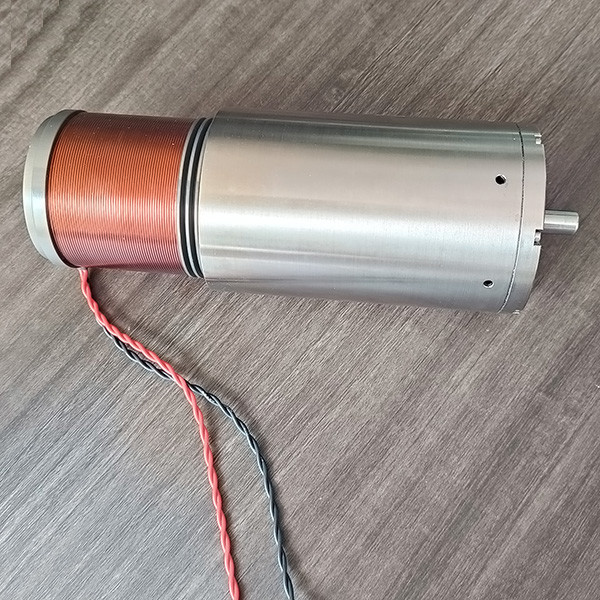

High-Precision High Frequency Micro Motor Fully House Voice Coil Actuator For 3D Printers

Name: HighPrecision High Frequency Micro Motor Fully House Voice Coil Actuator For 3D Printers
Brand: SUPT MOTION
Price: 142 USD

Wholesale High-Precision High Frequency Micro Motor Fully House Voice Coil Actuator For 3D Printers from china suppliers

Brand Name : SUPT MOTION

Model Number : VCAH Series

Certification : ISO9001

Place of Origin : China,Suzhou

MOQ : 1PCS

Price : $142

Payment Terms : T/T

Supply Ability : To be negotiated

Delivery Time : 1-5pcs ,5 days . >20pcs ,To be negotiated

Packaging Details : Customized packaging etc.

Warranty : 3months-1year

Product Model : VCAH0013-0070-00A

Continuous Force : 4.2N

Weight : 16g

Peak Force : 13N

Max Voltage （V） : 26.6

Total Stroke : 7mm

Construction : Permanent Magnet

Noise Level : Low

Type : Micro Motor

Protect Feature : Totally Enclosed

Contact Now

Product Description:

The VCAH series of Cylindrical Actuators constitute nearly 80% of the market ,they can productce a high force with a high acceleration rates.Peak Forces range for 0.7N to 3000N.Typically ,their stroke length is less than 50mm The VCAH Series Actuators Applications include valve Actuators,Z Axis pick and place,small accurate positive displacement metering pumps and both vibrators and active vibration dampening systems. Markets include Medical semiconductor,Aerospace and Automotive.

Totally enclosed with shaft voice coil motor in the 3D printer can control the precise movement of the print head, realize the precise printing of three-dimensional models, ensure the printing accuracy and quality, for the production of complex shapes and high-precision requirements of 3D printing works of great significance.
In plotter: as an external device of computer, it is used to realize precise line drawing and graphic output in the process of plotting to meet the demand for high-precision plotting in the fields of engineering design and drawing.

Features:

The voice coil motor has a built-in motion shaft and precision linear bearings.
The kinematic axis is made of lightweight, highly rigid and wear-resistant materials of high quality.
The actuator coil is lightweight, with short response time and high frequency.

Product Parameters:

Product Model	Peak Force (N)	Continuous Force at 25℃(N)	Total Stroke (mm)	Max Voltage (V)	Back EMF Constant (V/m/s)	Stator Diameter (mm)	The Length (mm)	Shaft end thread (mm)
VCAH0253-0120-00A	253	46.5	12	42.7	16	53.95	109	M5(Inner)
VCAH0011-0070-00A	11	3.6	7	26.2	4.9	31.5	38.9	M3(Outer)
VCAH0013-0070-00A	13	4.2	7	26.6	5.7	29	40.5	M3(Outer)
VCAH0030-0100-00A	30	7.2	10	24.9	5.2	37	47	M3(Outer)
VCAH0040-0075-00A	40	12.3	7.5	16.8	6.9	36	50	∮3
VCAH0040-0240-00A	40	6	24	44.5	8	41	83	M3(Inner)
VCAH0065-0140-00A	65	24.6	14	27.6	16	44	75	M3(Inner)
VCAH0230-0110-00A	230	100	11	34.2	37	71	117	∮10

Application:

The main application of a voice coil motor:

1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.

2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry

injection system.

3.Micro Machine industry:Feed systems, micro drilling, precision stamping.

4.Vibration System:Shaking table, vibration platform.

5.Medical field:Micro-injection system, respiratory equipment, testing equipment.

6.Aviation Technology:Flight control system, pilot feedback system.

7.Commercial use field:Computer cooling pump miniature camera auto focus system.

8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.
